CEMS - Online Monitoring System
Product Description
We are glad to forward the introduction of Online Water, Waste Water, STP, ETP, Ambient Air and Stack Monitoring systems as per State and Central Pollution Control Board Guidelines and also with US conformity. We represent the Brand TETHYS - FRANCE ( http://www.tethys-instruments.com ) , OPRUSS - USA ,HORIBA - JAPAN, for online monitoring solutions. We have recently won the project in Saudi Arabia for installation & commissioning of Water & CEMS and doing world wide exports especially to Gulf , Africa , Asian countries .
Our presence in PAN India with successful installations of more than 550 happy customers . Tethys Instruments is a leading global provider of gas and water on-line analysers for environmental applications. Headquartered in France, our distributors worldwide provide top-class service and instrumentation for environmental monitoring. Our technology based on UV spectroscopy offers unparalleled reliability and very low operating cost. Our new generations of gas and water analysers based on high speed digital signal processors provide unsurpassed performances in terms of response time, repeatability, ease of use, reliability. A special emphasis has been put on the ergonomy and accessibility to ease the installation and minimize the service cost. We are an experienced, multicultural, creative, dynamic and responsive team, who are always available and listen to the needs of our clients.
Our company Alfa Engineering Solutions (www.alfaenggsoutions.com) is a Leading solutions provider in Process Analytics, Process Instrumentation, Environment and Emission Monitoring & Automation. Our key Principal partner is Tethys Instruments, France. We work as their Distributor cum Stockist for their Water Quality Analyser product range. Tethys analysers provides measurement and monitoring of parameters like COD, BOD, TSS, pH, TOC, Flow, Ammoniacal Nitrogen, Oil-in-Water, Temperature, H2S, Turbidity, Conductivity, DO, TDS, ORP, Chromium etc. Please find attached the Technical literature for your reference. Our analysers are TUV Certified and it complies to all the regulations and guidelines of CPCB.
Few valuable clients are Mumbai Wankhede Cricket Stadium , Maruti Group , TATA Consultancy Services , Lodha Group , Castrol India , K Raheja , Lemon Tree Hotels , Adani Group , Eureka Forbes , Honda Motorcycles , JSW Energy Ltd , Intas Pharma , Bhoomi Developers and so on...
Organic Pollutant Monitor

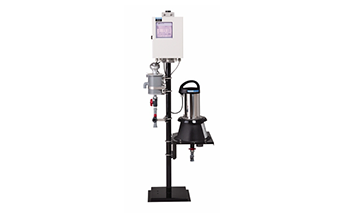

The OPSA-150 is an ultimate organic pollutant monitor that uses HORIBA's proprietary Rotary Cell Length Modulation, The key feature of this device is that it monitors organic pollutant content at drainage systems is able to transmit data with COD monitoring regulations, for monitoring quality of water measuring levels of organic matter at water supply intakes, and as an organic monitor on process lines (phenol meter).
Key features
- USAPH Approved product.
- COD, BOD & TSS Online Monitoring by UV - VIS Absorption
- Measurement of Organic Matter at Water Source
- Measurement of Organic Matter on the Process Line
- Continuous Measurement with Low Maintenance
- Large Measurement Range of 0 to 5.0 Abs
- Online Monitoring system for stp
- Zero drift correction is performed in every cycle of measurement which eliminates the effect of any interference on cells.
- Cell length modulation provides readings from multiple measurements, making available results from various cell lengths. This allows the single device to make measurements on a large range of concentrations from as low as 0 to 0.1 Abs, up to 0 to 5.0 Abs.
Features
Sensor that makes full use of Rotary Cell Length Modulation (Patent pending)
Zero drift correction is perfomed in every cycle of measurement. This correction can eliminate the effect of any interference on cells.
Cell length modulation provides readings from multiple measurements, making available results from various cell lengths. This allows the single device to make measurements on a large range of concentrations from as low as 0 to 0.1 Abs, up to 0 to 5.0 Abs.
Measuring Parameters:
BOD , COD , TSS , PH , Flow , Dissolved Oxygen, ORP, Conductivity, Temperature, Turbidity, Ammonium, Nitrate, TOC, DOC, SAC

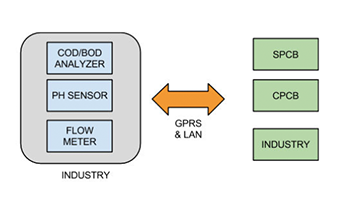

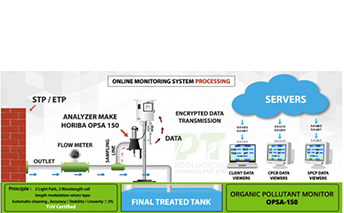

We are glad to introduce ALFA OPRUSS, USA- ONLINE MONITORING SYSTEM (CEMS) for your STP, ETP applications as per the latest guidelines of Pollution Control Departments. We represent the Brand HORIBA - JAPAN as well .We do the stack monitoring system for boilers, incinerator etc. To measure, monitor and connectivity with the pollution control board server.
Key-points stated by CPCB/SPCB as per their compliance protocols that we excel in every manner:
| Measurement Methods | UV + Visible DOAS (Differential Optical Absorption Spectroscopy) |
|---|---|
| Measurement Range | COD - 0-300 mg/L |
| Measurement Accuracy | ± 2% |
| Measurement Repeat-ability | ± 2% |
| Measurement Interval | Setting range of 1-30 minutes |
| Resolution | 0.01 mg/L |
| Calibration | Two point based automatic calibration |
| Weight | 950 gm |
| Sample maximum pressure | 1 Bar |
| Operating and Storage Temperature | 5~45oC |
| Power | 230 VAC±10%, 50 Hzn |
| Output | RS485 |
| Protection Class | IP68 |
| Cleaning method | Automatic via Wiper Blade |
| MOC | SS316, Quartz |
Other Advantages :
- Automatic continuous cleaning , no human intervention required.
- No chemical reagents required for reaction or for cleaning.
- No external Air compressor or water pump required for sampling
- Absolutely Maintenance free equipment
- Works at room temperature , fitted on wall and pole mounting
- We do have Opruss 600 ppm & Opruss 800 ppm measurements
Few of our valuable clients are Wankhede Cricket Stadium, Maruti Group, TATA Consultancy Services, Lodha Group, Castrol India, K Raheja, Lemon Tree Hotels, Adani Group, Eureka Forbes, Honda Motorcycles, JSW Energy Ltd, Intas Pharma, Bhoomi Developers and so on...
