Mechanical Products, Project Supplies & EPC Projects

The merit of our company is to offer a comprehensive service (Design, Procurement, Fabrication and Installation) in the field of Mechanical and Structural Steel. We can ensure timely project completion, end-to-end quality management and budget control and we provide solutions, not just products with complete manufacturing model using detail application .

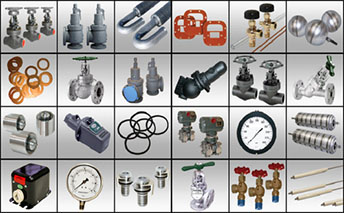

Product Range

We Manufacture , Supply & Exports a wide range of highly durable and world class products, which are made with precision under the supervision of qualified engineers and skilled designers. The complete manufacturing process is carried out after thorough research over the competitive market requirements and customers' preferences. It helps us to deliver them the best assortment that stand high on their expectations.

Mechanical Construction Activity

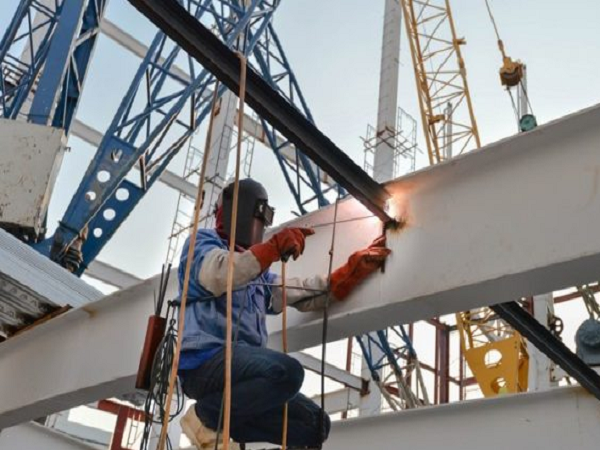

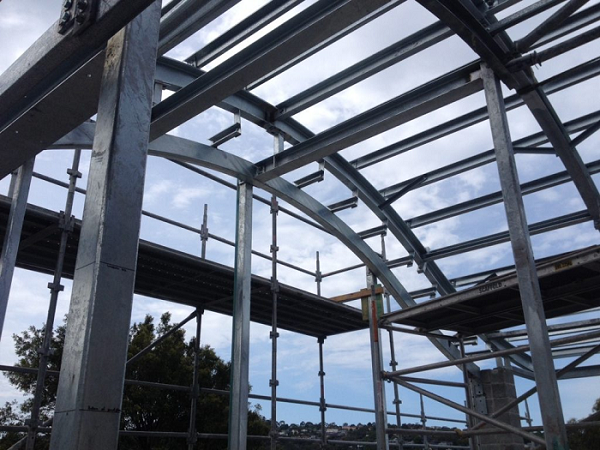

Mechanical systems Design & Engineering. Air-conditioning and ventilation, (HVAC) Heavy, Medium and Light Steel Structures All kinds of Piping work , Spool Fabrications Installation of various types of Pumps. Fuel System with Installation of fuel tanks (Above ground & Underground). Firefighting systems, (Dry & wet riser system, CO2 system, FM20, foam ect. ) Installation of LPG system, Boiler System Establishing Medical Gas ,Plumbing & Drainage Infrastructure Utility (Sewage network, storm water, irrigation system, potable & fire water system)

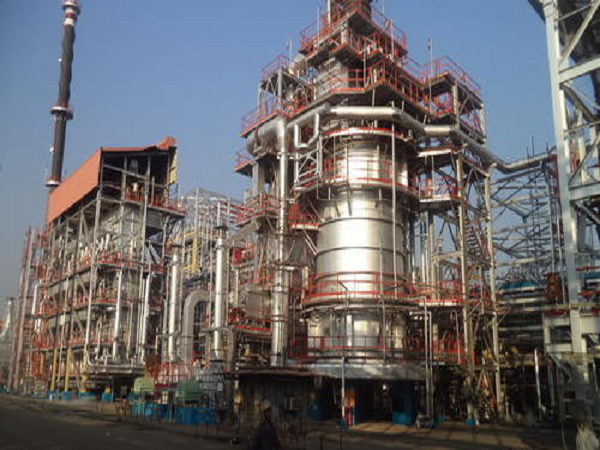

Process Equipments

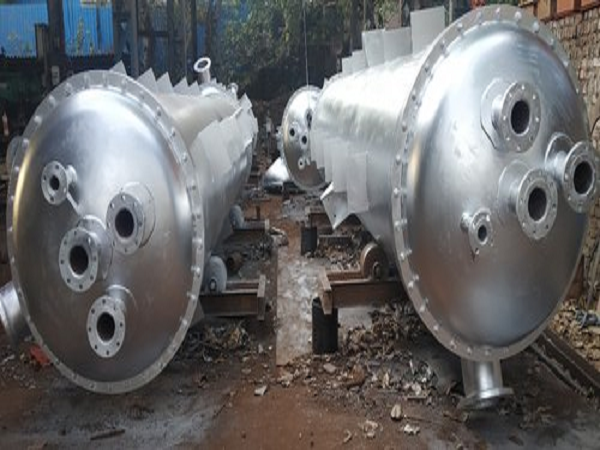

Tanks, Pressure Vessels, Heat Exchanger, Ducts, pipe spools and pipe supports Process Equipment & Industrial Spare Parts Transmission and telecommunication Towers Reactor, Storage Tank, Agitator, Heat Exchanger, Condenser Pressure-Vessels, Chemical Plant Machinery Steel Plant Machinery, Air Pre-Heater Hot Air Tube Bundle, Galvanising Tank

Mechanical Testing Products and Machines

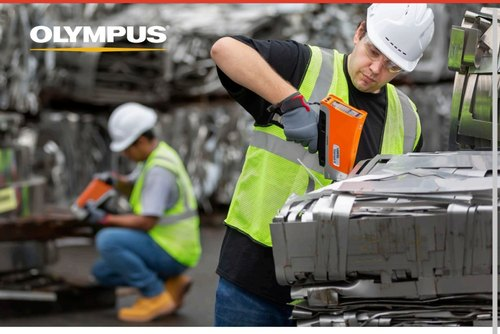

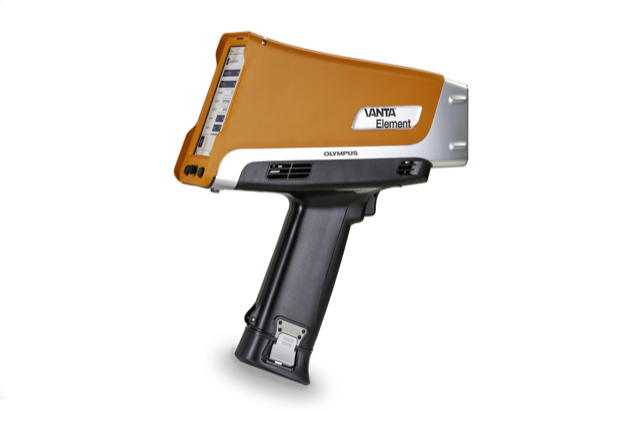

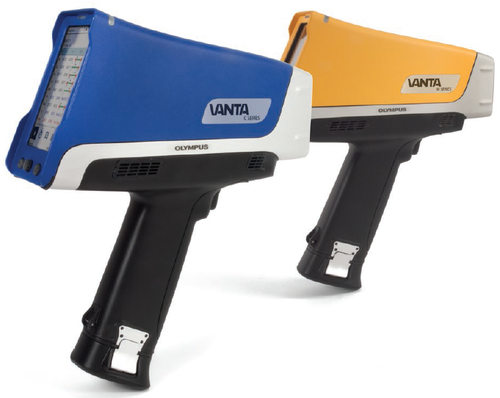

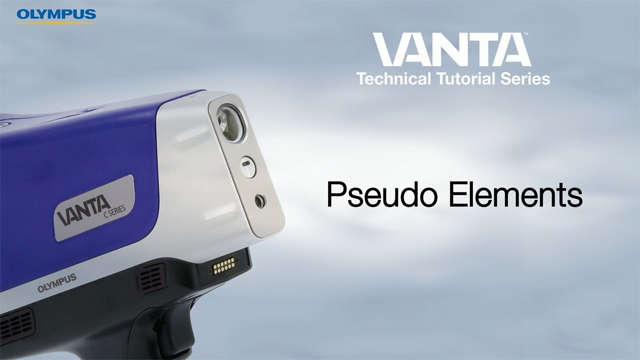

Vanta™ handheld XRF analyzers provide fast, accurate chemistry and alloy identification in PMI applications including piping, valves, welds, components, and pressure vessels. The Vanta Element handheld X-Ray Fluorescence (XRF) analyzer provides elemental analysis for alloy grade ID. Rugged and suitable for demanding PMI applications. Data exportable via USB. Vanta model Element can analyse alloying elements such as Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hf, Ta, Re, Pb, Bi, Zr, Nb, Mo, Pd, Cd, Ag, Sn, Sb e

Vanta analyzers are essential for:
Ensuring the correct alloy components are installed in critical locations.
Detecting sulfidation corrosion susceptibility (API RP 939-C).
Evaluating flow accelerated corrosion (FAC) susceptibility.
Discerning residual element corrosion susceptibility in hydrofluoric acid (HF) alkylation units.
Cloud technology enabled ,Vanta analyzers are built for in-service inspection of high temperature systems and hot sample surfaces up to 425 °C for maximum productivity.Working conditions can be tough on electronic devices and breakdowns cost time and money.
Vanta analyzers are durable for increased uptime and a low cost of ownership.

Drop tested using U.S. Department of Defense methods (MIL-STD-810G), reducing the risk of damage and costly repairs when a device is dropped or jostled.IP65 rated to withstand rain, dirt, and dust.*Withstands a temperature range of -10 °C to 50 °C (14 °F to 122 °F) at full duty cycle.**

Thermoniton XRF Analyzers

Detector Type High-performance semiconductor, Display Type Fixed angle,color,touch-screen display
Weight 3.0 lb.,5.8 oz.,1.53 kg , Dimensions 10.25 x 11 x 4 in. (256 x 275 x 100 mm)
Voltage 45 kV ,Height 4 in.,100 mm, Length 10.25 in.,256 mm ,Width 11 in.,275 mm
Power Consumption 100 Micro A Data Memory 64 MB internal system memory/128 MB internal user storage, Tube Type Ag anode 45 kV maximum,80 Micro A maximum
System Electronics 400 MHz ARM 11 CPU,300 MHz dedicated DSP,80 MHz ASICS DSP for signal processing , Data Entry Touch-screen keyboard,user-programmable pick lists
Licensing Varies by region. Contact your local distributor, Certifications CE,RoHS , Storage Internal Less Than 10,000 readings with spectra
Data Transfer USB,Bluetooth and RS-232 serial communication

Product Description

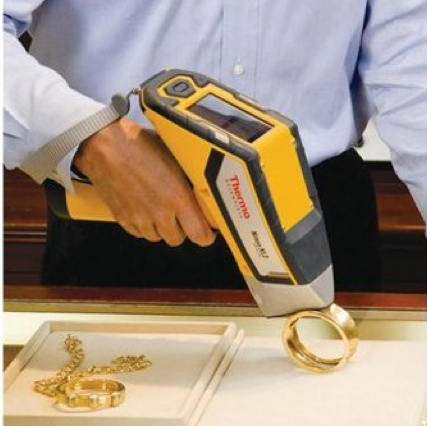

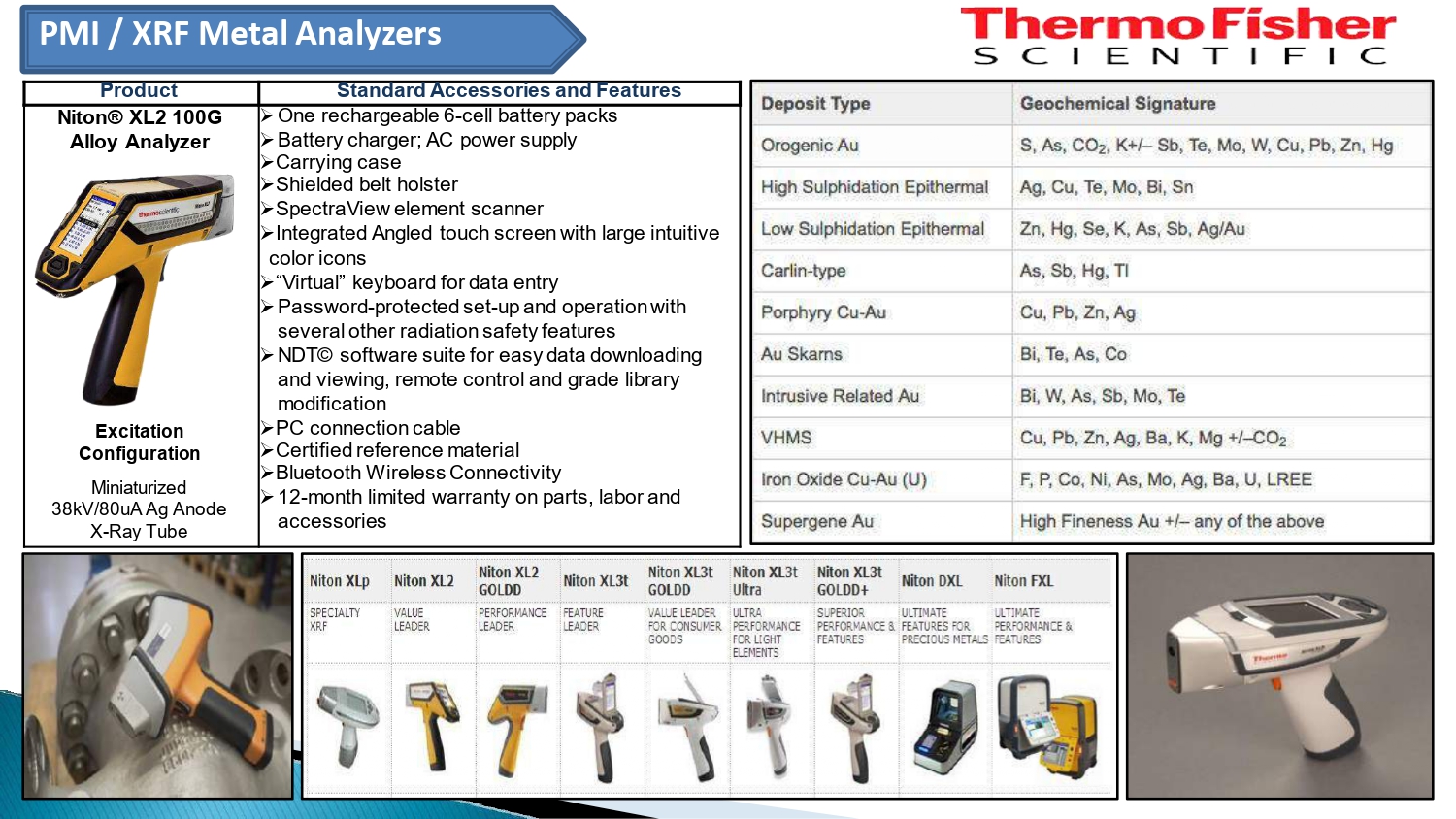

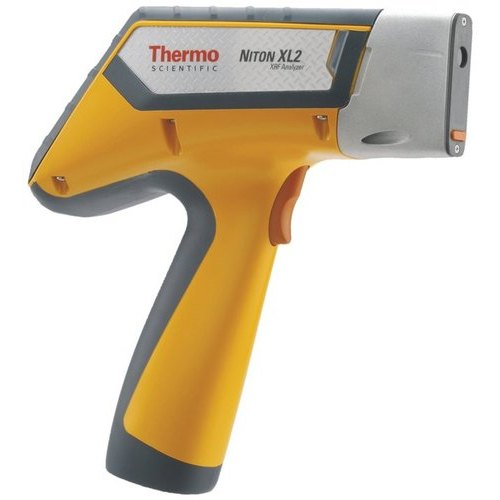

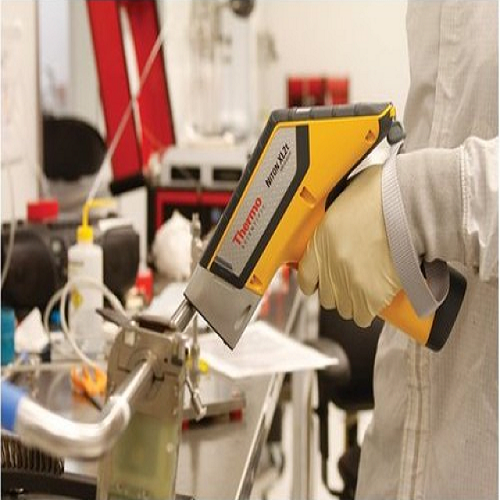

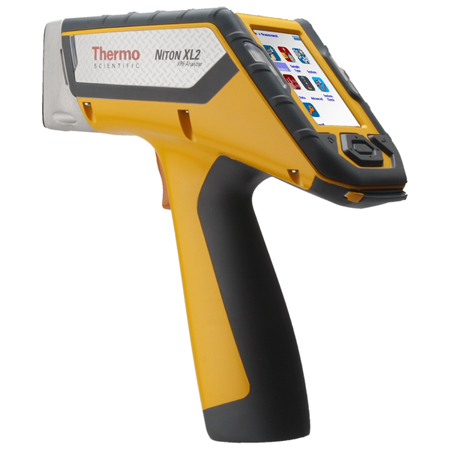

Get fast, accurate metal alloy verification for manufacturing quality assurance with the Thermo Scientific™ Niton™ XL2 Analyzer. Featuring a standard integrated camera for accurate positioning of the analysis area, the XL2 Analyzer provides immediate, nondestructive elemental analysis of alloy materials from titanium to nickel as well as the tramp and trace element analysis. Lightweight, rugged handheld Niton XL2 Analyzers are well suited for a growing list of applications including scrap metal identification, mining and exploration, and lead screening for consumer and electronic goods.

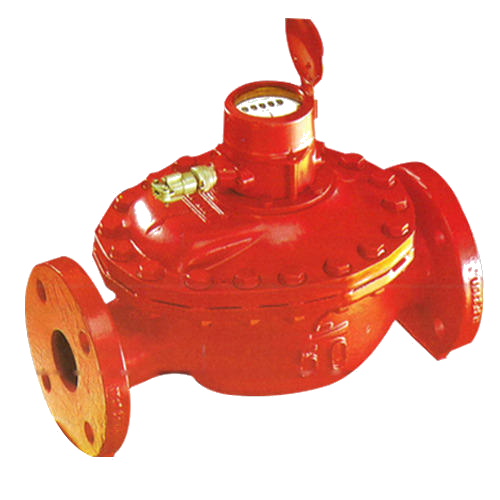

Kent Oil Flow Meter

KENT Oil Meter was a trendsetting product that monitors oil receipts and consumption. It has since been successfully adopted by most of the prime companies in India and Abroad. Owing to the unmatched utility of our state-of-the-art products, Kirloskar, HPCL, Escorts, Shriram Group, LML and numerous others used it for various applications ranging from studying the properties of oil to measuring and conserving it.

KENT Oil meters measure exact oil receipt and stop pilferage of oil & measure exact oil consumption to maximize efficiency KENT Oil Meters are an accurate, reliable and economical way of obtaining all the information a user needs to control oil consumption in Generators, Boilers and to measure exact oil receipts. Wherever Oil is received, stored and used, KENT Oil Meters measure, totalize and records flow precisely. KENT Oil Meters can be installed in the pipeline and would totalize the flow of oil flowing through the line

Size Flow Rate Type Flanged/Threaded Applications
15 MM 68 LPH TO 720 LPH Threaded Type Monitor oil consumption
20 MM 114 LPH TO 1440 LPH Threaded Type Monitor oil consumption
25 MM 180LPH TO 2160 LPH Threaded Type Monitor oil consumption
40 MM 410 LPH TO 5400 LPH Flanged Type - PCD 110 MM Monitor oil transfer
50 MM 818 LPH TO 12000 LPH Flanged Type - PCD 125 MM Monitor oil transfer
80 MM 1636 LPH TO 24000 LPH Flanged Type - PCD 160 MM Monitor oil transfer
